Plough Parts — Bar Point Shares.

Wear-resistant boron steel bar point shares for mouldboard ploughs. Reversible and extendable bar point for first-day ploughing quality — suited to stony, rooted, and aggressive soil conditions across all soil types.

Boron Steel 45 ± 2 HRC Integral Hardening Shot Blasted / Painted Reversible Bar Point

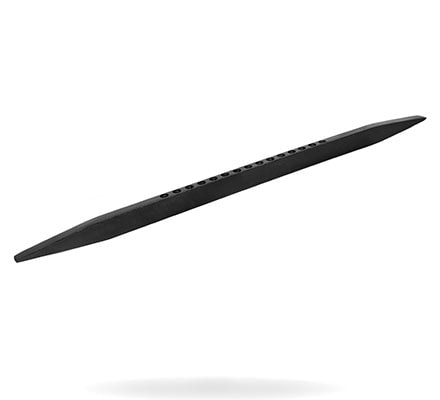

Rajpal bar point share — boron steel, reversible bar point
Material
Boron Steel
Hardness
45 ± 2 HRC
Heat Treatment
Integral hardening — no deformation
Finish
Shot Blasted or Painted
Bar Point
Reversible & extendable
Soil Suitability
Stony, rooted & aggressive — all types
Type A · Single Side Taper 18°

Bar Point — Countersunk on Top

25×32 and 32×32 section bar with 8-hole CSK pattern on the top face. Covers Maharashtra standard pitch (25 mm) and pan-India / Haryana heavy-duty pitch (50 mm). 32×32 section is the most popular size for Haryana and pan-India use.

Product Code Section (mm) Length Holes / CSK Pitch (mm) Weight (kg) Machine / Area
RAMBP-2532-20P25 25 × 32 500 mm / 20″ 8 Nos. CSK Ø16mm 25 3.50 Maharashtra
RAMBP-2532-24P25 25 × 32 600 mm / 24″ 8 Nos. CSK Ø16mm 25 4.00 Maharashtra
RAMBP-2532-28P25 25 × 32 700 mm / 28″ 8 Nos. CSK Ø16mm 25 4.50 Maharashtra
RAMBP-2532-28P50 25 × 32 700 mm / 28″ 8 Nos. CSK Ø16mm 50 4.50 Maharashtra
RAMBP-3232-28P25 32 × 32 700 mm / 28″ 8 Nos. CSK Ø16mm 25 5.20 Maharashtra Popular
RAMBP-3232-28P50 32 × 32 700 mm / 28″ 8 Nos. CSK Ø16mm 50 5.20 Haryana · Pan India Popular
RAMBP-3232-30P50 32 × 32 750 mm / 30″ 8 Nos. CSK Ø16mm 50 5.60 Madhya Pradesh
Type B · Single Side Taper 18°

Bar Point — Countersunk / Holes on Side

25×40 wider section bar with side-mounted countersunk holes. Includes Fieldking pan-India pattern (730 mm, 6-hole + 22mm CSK). The 600 mm / 25 mm pitch is the most popular Maharashtra size in this section.

Product Code Section (mm) Length Holes / CSK Pitch (mm) Weight (kg) Machine / Area
RAMBP-2540-24P50 25 × 40 600 mm / 24″ 8 Nos. CSK Ø16mm 50 4.60 Maharashtra
RAMBP-2540-24P25 25 × 40 600 mm / 24″ 8 Nos. CSK Ø16mm (BS) 25 4.60 Maharashtra Popular
RAMBP-2540-28P50 25 × 40 700 mm / 28″ 8 Nos. CSK Ø16mm 50 5.30 Maharashtra
RAMBP-2540-29FK 25 × 40 730 mm / 29″ 6 Holes Ø13mm + CSK Ø22mm 50 5.10 Fieldking · Pan India
Type C · Both Side V-Shape 13°

Bar Point — V-Shape Taper, CSK on Top

Double-sided 13° V-taper for deeper soil penetration. 15-hole CSK top pattern. Available in 25×32 and 25×40 sections. Primarily suited for Gujarat (Umiya) and Tamil Nadu requirements.

Product Code Section (mm) Length Holes / CSK Pitch (mm) Weight (kg) Machine / Area
RAMBP2532-32V 25 × 32 800 mm / 32″ 15 Nos. CSK Ø16mm 25 4.10 Umiya · Gujarat
RAMBP2532-36V 25 × 32 900 mm / 36″ 15 Nos. CSK Ø16mm 25 4.80 Umiya · Gujarat
RAMBP2540-36V 25 × 40 900 mm / 36″ 15 Nos. CSK Ø16mm 25 6.10 Tamil Nadu

Custom sizes available on request

Need a specific section, length, or hole pattern?
